Description:

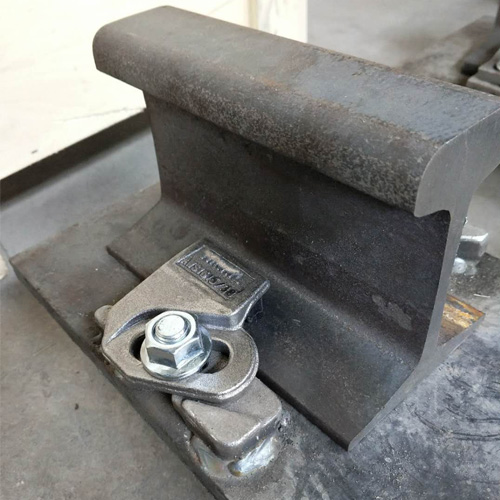

AWS1615/38 adjustable rail fixing clip is specially designed for heavy rail.Its greatest advantage is that it has a very low height after installation and it can help to fix the rail on the narrowest steel girder.It can not only minimize installation cost,but also meet all usages of the cranes with horizontal guide rollers.

Specifications:

Max side load 120kN

15mm horizontal rail adjustment

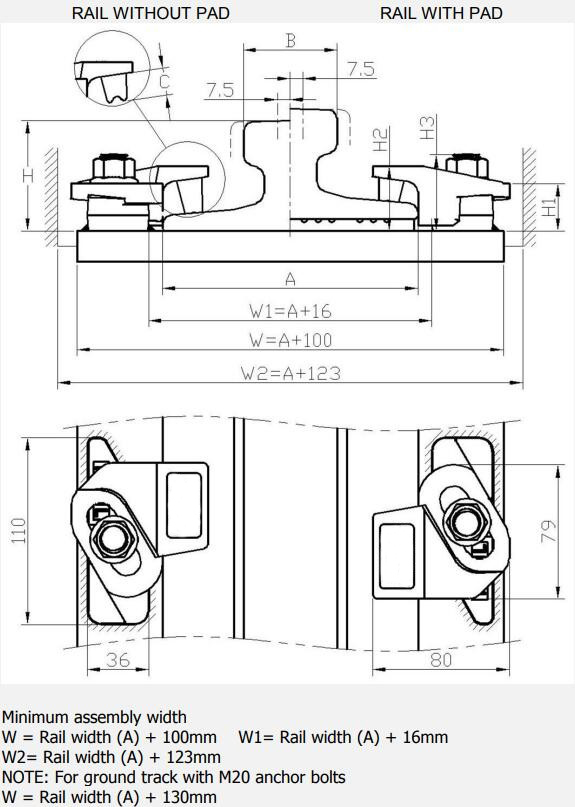

Dimensions(mm):

1.    Flange nut.

2.    Clip cap with integral rubber block.

3.    M16 Captive bolt.

4.    Weldable base.

Application:

Used for 38kg rail, 43kg rail, 50kg rail, qu70 rail, qu80 rail, a55 rail, a65 rail, a75 rail, a100 rail, jis37 rail, etc. Other sizes according to your requirements.

Product Performance:

1.It can be used for all kinds of cranes with or without guide rollers.

2.THRAIL rail clip is equipped with vulcanized integral rubber blocks.It can help reduce noise greatly and improve working environment while fastening rails. 3.The rail fixing clip has a self-locking mechanism which makes the clip locked automatically by the pitched clip cap and weldable base with wedge structure theory.

4.It provides a optimal installation size.It’s no need to drill hole on the steel girder when installation.Also the bolts don’t need to be threaded through the hole from beneath of the steel girder.Workers only need to weld the weldable base on the steel rail support.The two parts(clip cap and weldable base) are locked together with grade 8.8 bolt.

5.Rail fixing clip with vulcanized rubber blocks helps control the deviation between rail and crane girder.It can be installed easily with impact wrench.More over,it provides a great deal of convenience for rail installation and adjustment of the rail lateral movement.
