QU80 Crane Rail

Type: QU80 crane steel rails
Material: U71Mn
Weight: 63.69KG/M
Length: 12m
Standard: YB/T5055-93
contact download
Product Descriptions:
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
Specifications:
QU80 Rail Parameters
Rail Type Weight(Kg/m) Material Length(m)
QU80 63.69 U71Mn 12
Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness
80 130 130 32

Other Sizes of Crane Rail
Size Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness(mm) Weight(Kg/m) Material Length(m)
QU70 70 120 120 28 52.8 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12
QU120 120 170 170 44 118.1 U71Mn 12

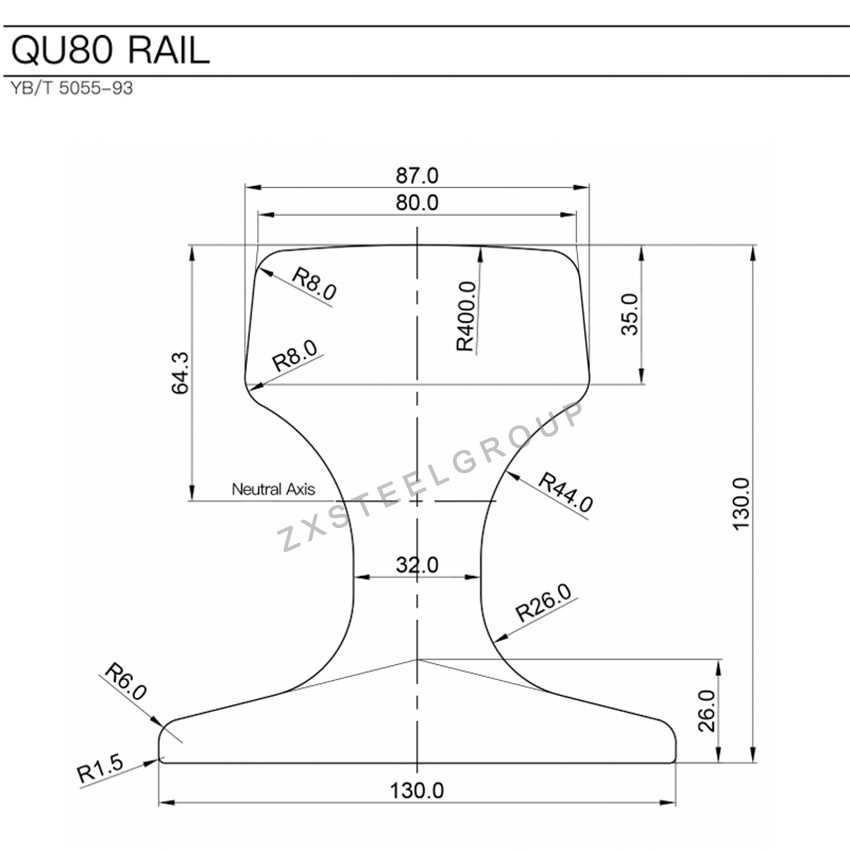

Drawing:

We supply and export  QU80 Rail with high quality and competitive prices. Qu80 rail is one of crane rails.If you need any qu80 rail,please contact us.
Application: Gantry crane, Big project, Wharf, etc.
Safe load: 100tons
Crane rail is divided into four kinds, QU120 rail, QU100 rail, QU80 rail, QU70 rail,the largest single weight is QU120 can reach 118kg/m.QU80 Rail is use for for crane and trolley track.The material of qu80 rail is U71Mn.Crane is mainly divided into small light lifting equipment, bridge frame , arm posture , cable type.
