Mine Car

Mine car is a special vehicle for mine rail transportation.

In order to adapt to the narrow condition of underground roadway, the overall dimensions are compact. According to different structures and unloading methods, harvesters can be divided into fixed harvesters, dump harvesters and side dump harvesters.

Mine car is mainly used for underground roadway, shaft and ground rail transportation, and it is the largest and most widely used transportation equipment in coal mines.

Classification: Fixed Type, Bucket Tipping Type and Side Dump Type Common gauge: 600mm, 762mm and 900mm

specification

Our mine cars are available in diverse strengths and sizes

YCC CURVED RAIL SIDE DUMP MINE CAR

Model
Dimension
Length(mm)
Width(mm)
Height(mm)
Weight(kg)
Volume
(m³)
Wheel
diameter
Loading
(Ton)
1.2M3(n type)
2150
1450
1270
1000
1.2
300
1.6
1.6M3
2500
1200
1300
1363
1.6
350
4
2.5M3
3650
1250
1300
2205
2.5
400
6.25
4M3
3650
1500
1586
2980
4
350
10
6M3
5000
1800
1675
3173
6
350
15
8M3
6350
1500
1634
4750
8
350
15

YGC FIXED MINE CAR

Model
Dimension
Length(mm)
Width(mm)
Height(mm)
Weight(kg)
Volume
(m³)
Wheel
diameter
Loading
(Ton)
YGC0.5M3
1550
850
1200
560
0.5
300
1.35
YGC0.7M3
1650
950
1250
596
0.7
300
1.85
YGC1.0m3
1850
880
1150
725
1.0
300
2.25
YGC1.1M3
2000
880
1150
600
1.1
300
1
YGC1.2M3
1900
1050
1200
735
1.2
300
3
YGC1.7M3
2400/2100
1050/1150
1200/1300
720/970
1.7
300/350
1.5
YGC2M3
3000
1200
1200
1330
2.0
400
5
YGC3.3M3
3450
1320
1300
1320
3.3
350
3

KC SINGLE-SIDE CURVED RAIL DUMPING MINE CAR

Model
Dimension
Length(mm)
Width(mm)
Height(mm)
angle(α)
Volume
(m³)
Wheel
diameter
Loading
(Ton)
kc0.7-6
1650
980
1050
≥40°
0.7
300
1.77
KC1.2-6
2100
1050
1200
≥42°
1.2
300
3
KC1.6-6
2500
1200
1300
≥42°
1.6
350
4
KC2-6
3000
1250
1300
≥42°
2.0
400
5
KC2-7
3000
1250
1300
≥42°
2.0
400
5
KC2.5-6
3500
1250
1300
≥42°
2.5
400
6.25
KC2.5-7
3500
1250
1300
≥42°
2.5
400
6.25
KC4-7
3900
1400
1650
≥42°
4.0
450
10
KC4-9
3900
1400
1650
≥42°
4.0
450
10

MCC SINGLE-SIDE CURVED RAIL DUMPING MINE CAR

Model
Dimension
Length(mm)
Width(mm)
Height(mm)
angle(α)
Volume
(m³)
Wheel
diameter
Loading
(Ton)
MCC1.2-6
2100
1050
1200
≥42°
1.2
300
3
MCC1.6-6
2500
1200
1300
≥42°
1.6
350
4
MCC2-6
3000
1250
1300
≥42°
2.0
400
5
MCC2.5-6
3500
1250
1300
≥42°
2.5
400
6

KFU(V) BUCKET TIPPING MINE CAR

Model
Dimension
Length(mm)
Width(mm)
Height(mm)
Weight(kg)
Volume
(m³)
Unloading
angle (α)
Loading
(Ton)
KFV0.80-6
1850
1200
1200
560
0.8
≥40°
0.5
KFV1.10-6
2400
1400
1300
680
1.1
≥40°
1
KFV1.10-7
2400
1400
1300
690
1.1
≥40°
1
KFV1.50-7
3360
1750
1450
1120
1.5
≥40°
1.25
KFV1.50-9
3360
1750
1450
1140
1.5
≥40°
1.25
KFU0.50-6
1500
850
1050
550
0.5
≥40°
1.25
KFU0.55-6
1600
850
1150
570
0.55
≥40°
1.38
KFU0.60-6
1600
920
1200
610
0.6
≥40°
1.63
KFU0.70-6
1650
980
1200
710
0.7
≥40°
1.75
KFU0.70-7
1650
980
1200
720
0.7
≥40°
1.75
KFU0.75-6
1700
980
1250
740
0.75
≥40°
1.88
KFU0.75-7
1700
980
1250
750
0.75
≥40°
1.88

MGC FIXED MINE CAR

Model
Dimension
Length(mm)
Width(mm)
Height(mm)
Weight(kg)
Volume
(m³)
Wheel
diameter
Loading
(Ton)
MGC1.1-6A
2000
880
1150
610
1.1
300
1
MGC1.1-6B
2000
880
1150
610
1.1
300
1
MGC1.7-6A
2400
1050
1200
740
1.7
300
1.5
MGC1.7-6B
2400
1050
1200
760
1.7
300
1.5
MGC1.7-9
2100
1150
1300
980
1.7
350
1.5
MGC3.3-9
3450
1320
1300
1320
3.3
350
3

Mine car —— narrow gauge railway transport vehicle for transporting goods in mines, which must be generally towed by engine.

We supply all kinds of mine cars. We have the inventory, resources, and experience to meet your needs.

accessory products

Series of mining tools

U Steel Arch
Steel Rail

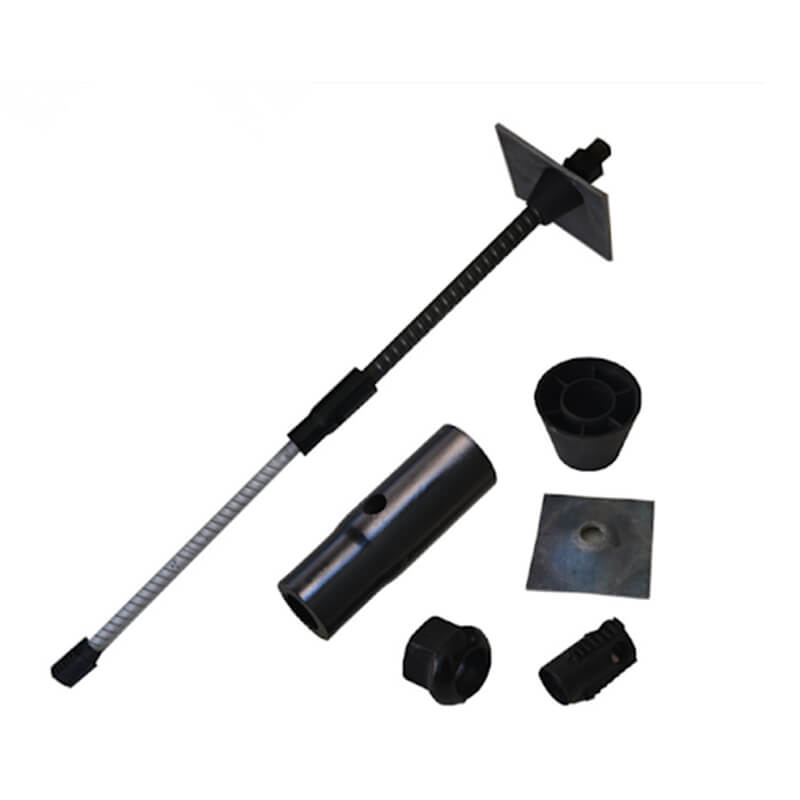

Rock Bolt
Split Set Stabilisers

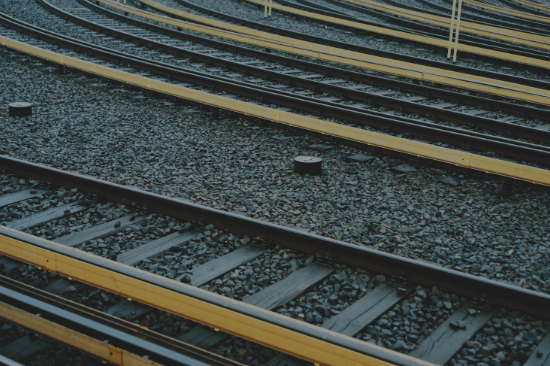

the rail line
mine workings

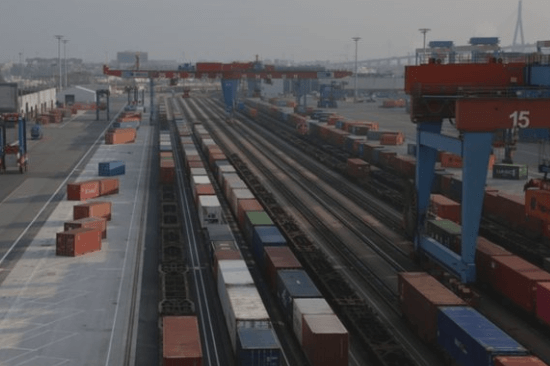

dock port
