What is gauge tie rod?

Edit:Zongxiang Heavy Industry--Lucas Date:2020-02-14 01:05:33

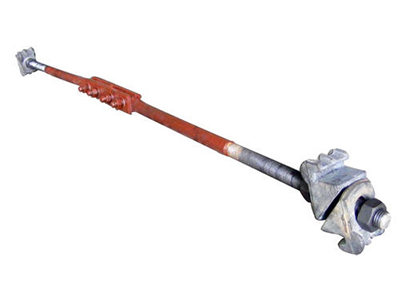

Gauge tie rods are used to connect two rails at the bottom of the rail with a bar to improve the lateral stability of the rail and the ability of the rail to maintain gauge. Common types include common type, insulating type, lengthening type, etc. They are mainly composed of chuck, insulating sleeve, spring ring, gasket and nut.standard rail for railway

According to materials, gauge tie rods can be divided into ordinary gauge tie rods and insulating gauge tie rods.  Common gauge tie rods usually have turnout areas at turning points.  The tension of gauge tie rod is used to prevent the track from spreading outwards when the locomotive passes through.  Insulate the middle of the gauge tie rod to ensure the technical requirements of the insulated track.  Some lines have track circuits, which are separated by insulation parts in gauge tie rods of insulation specifications. Reasonable design, simple structure and reliable performance.  Compared with ordinary gauge tie rods, this material can be widely used in circuit parts of various gauge tie rods.  The insulating sleeve pull rod is sleeved at the joint of the gauge pull rod of the insulating sleeve, and the ends of the two rods and the inner holes of the sheaths are provided with mutually matched connecting structures.standard rail for railway

In short, gauge tie rods of different material specifications are different in use.  Gauge tie rod is an important part of railway line. If the gauge tie rod is seriously missing and the gauge of the line deviates, if the train travels to this section, it will derail, or if it is serious, it will cause the train to overturn, with unimaginable consequences.  Therefore, when producing gauge tie rods, they must be produced according to national standards.standard rail for railway
