How to install and use track clamp correctly?

Edit:Zongxiang Heavy Industry--Lucas Date:2020-11-30 09:49:42

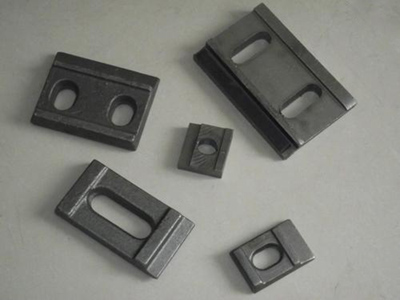

As a kind of industrial and mining accessories, the track platen is a reliable connection between the crane track and the ground. It is arranged along the whole length of the guide rail. Set a group every 500mm. In the running state of the crane, it can bear vertical and transverse impact force. The track platen adopts adjustable combined platen, which can overcome the faults of traditional track platen in use.

After installing track clamp, reliable contact between clamp and guide rail cannot be protected. Some platens cannot adjust the horizontal direction after installation, so they may be caused after normal loading or thermal expansion and cold contraction. The longitudinal movement of the lifting rail is easy to wear, which leads to loose bolts of the pressure plate. manual railroad switch

When using the adjustable combined track platen, the track can be fixed horizontally, and the track position can also be adjusted horizontally. In addition, the track pressure plate has self-locking function, which can reliably fix the track and prevent the track from shifting under large wheel pressure. The rail is fixed in the vertical direction by elastic force. When the track undergoes thermal expansion and contraction, it can also allow the track to move longitudinally without wearing the track pressure plate, and make the bottom surface of the track closely contact with the rubber composite backing plate laid on the track.

In order to ensure the smooth operation of cranes, they are often used for laying welding tracks. Every section of the whole crane track is welded into one. The adjustable combined track pressing plate is especially suitable for fixing the track belt, which can well eliminate the unfavorable factors caused by the use of welding tracks.manual railroad switch
