China Standard 15kg/m Light Steel Rail
Edit:Zongxiang Heavy Industry-- Date:2017-10-20 13:48:53

China Standard 15kg/m Light Steel Rail

Edit:Henan Zongxiang Heavy Industry Import & Export Co.,Ltd   Date:Mar 08, 2017


Product Detail

China Standard 15kg/m Light Steel Rail


  • Model NO.:15kg/m Light Steel Rail

  • Grade:55q,Q235

  • Price:Negotiable

Product Description

Rail Height: 79.37mm
Bottom width:79.37mm
Head width:42.86mm
Web thickness:8.33mm
Length:6-9m
Theoeritical weight:15.2kg/m


Besides 15kg/m light steel rail,we also produce the following rails.


Light rail

Size:8kg/m,9kg/m,12kg/m,15kg/m,18kg/m,22kg/m,24kg/m,30kg/m

Length: 6-12m or based on customers demands

Material: q235/55q



Heavy Rail
Size:
38kg/m,43kg/m,50kg/m,60kg/m
Length: 12-36m or Other Length Accord Requirement

Material: 50Mn/U71Mn



Crane rail

Size: qu70,qu80,qu100,qu120

Length: 12m or based on your customers demands

Material: U71Mn

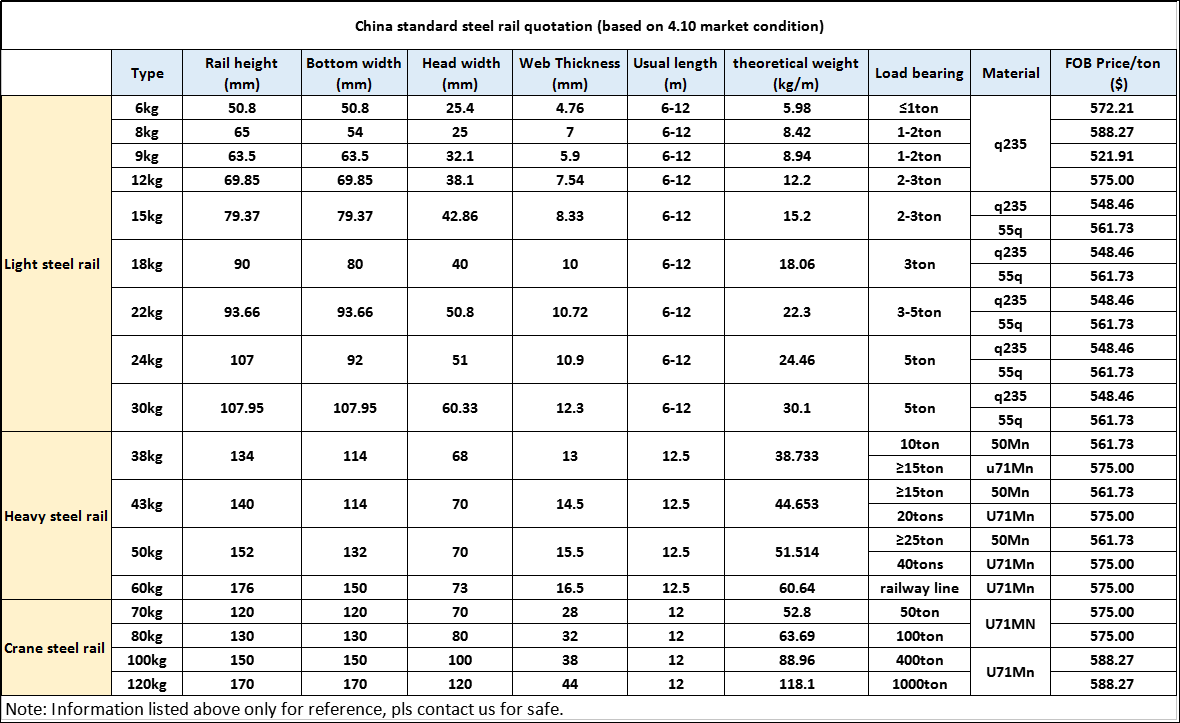

Below is QUOTATION EXCEL for your reference.


Henan Zongxiang Heavy Industry Import&Export Co.,ltd.manufactures steel rails and railway fasteners . As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/  Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
