The specification of light steel rail.

Type	Height (mm)	Base Width (mm)	Head Withd (mm)	Web(mm)	Theoretical Weight (kg/m)	Length (m)	Materials
6KG	50.8	50.8	25.4	4.76	5.98	6-12	Q235
8KG	65	54	25	7.0	8.42
9KG	63.5	63.5	32.1	5.9	8.94		Q235/55Q
12KG	69.85	69.85	38.1	7.54	12.2
15KG	79.37	79.37	42.86	8.33	15.2
18KG	90	80	40	10.0	18.06
22KG	93.66	93.66	50.80	10.72	22.30
24KG	107	92	51	10.9	24.46
30KG	107.95	107.95	60.33	12.30	30.10

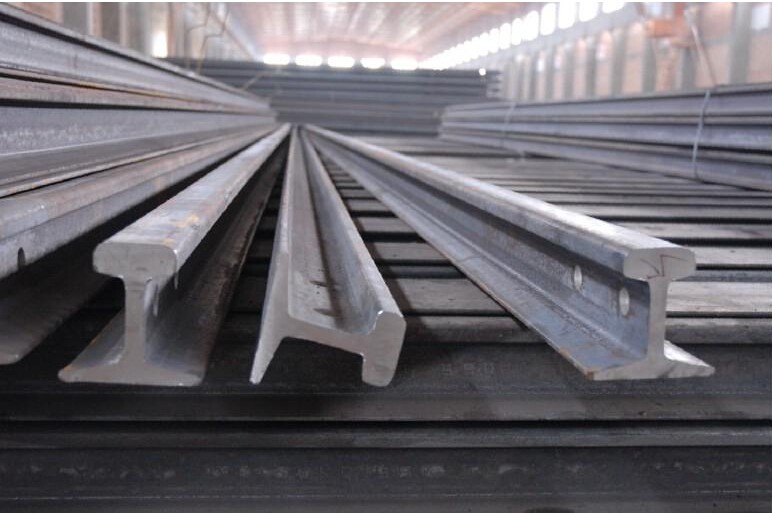

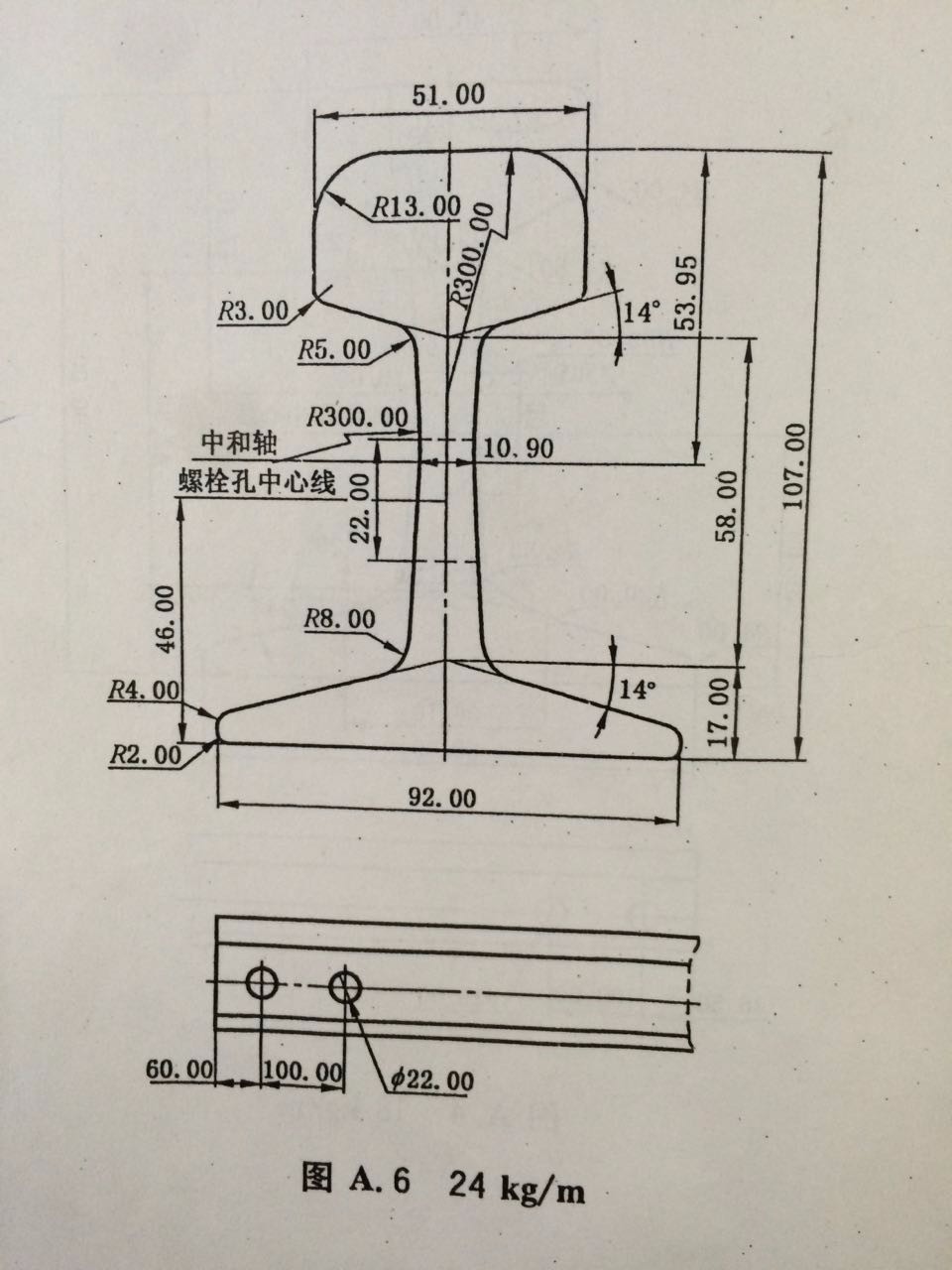

The drawing and object of GB 24KG rail

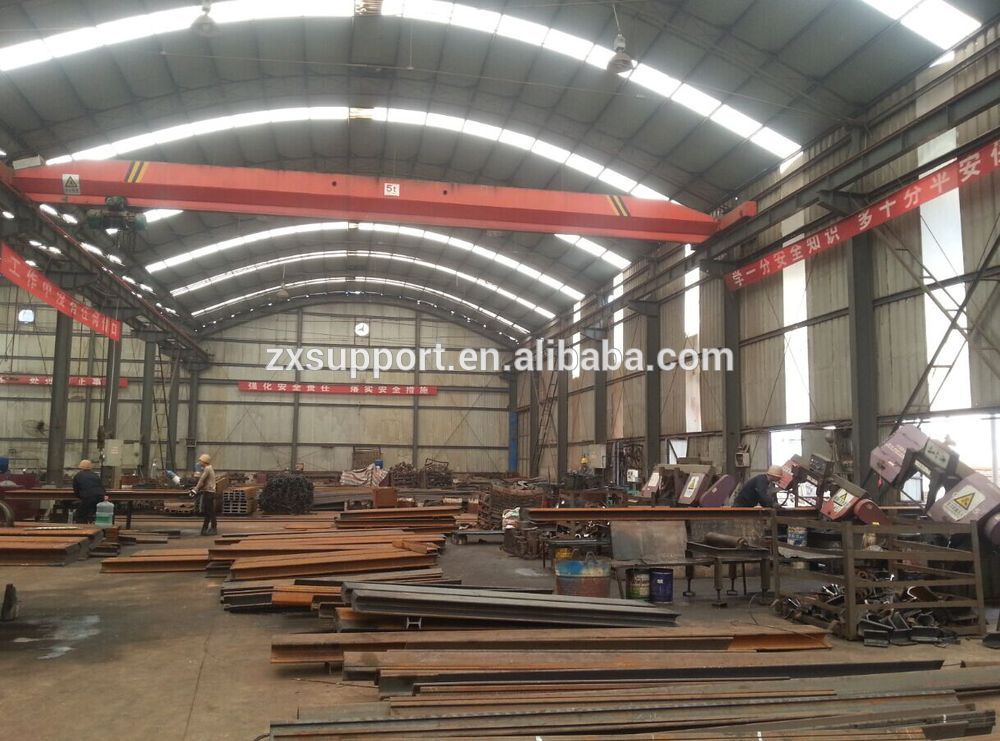

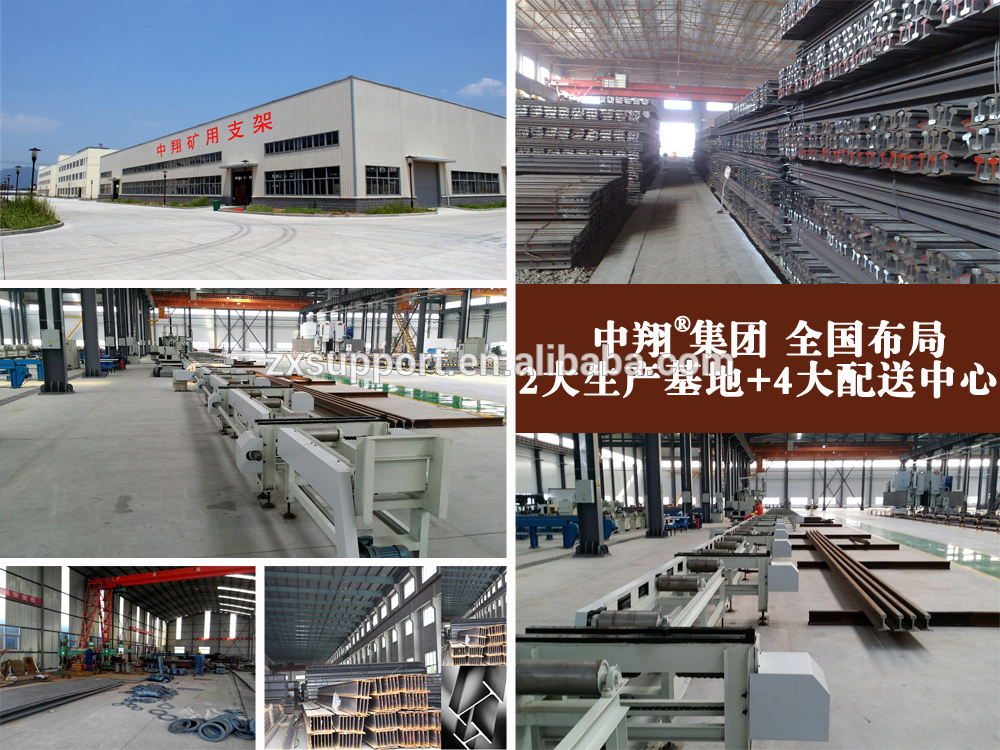

Company Information

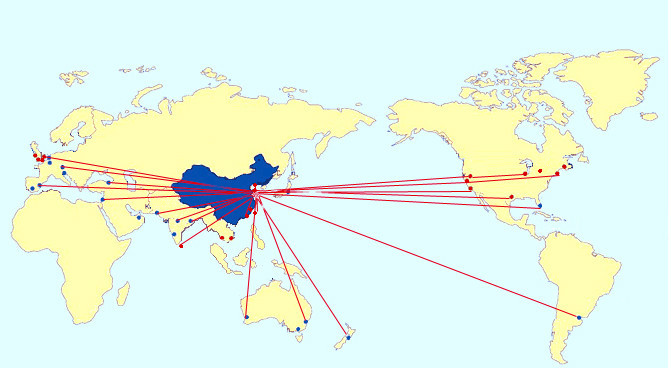

Zhongxiang Steel Group is highly praised for the steel and steel products exported to over 30 countries around the world. We are glad to service for all fields of people domestic and overseas. We sincerely want to cooperate with you on the basis of mutual benefit.

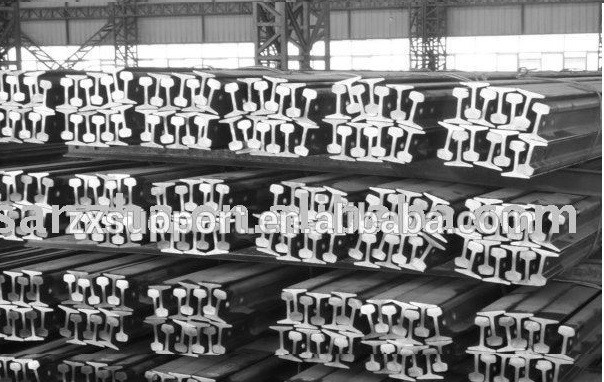

Steel rails

light rail, heavy rail, crane rail & other standard steel rails

Railway accessories

turnout switch, fish plates, rail clip, rail clamp, track spike, rail bolt/nut/washer, rail pad and etc.

Mining support products

U/H beam steel arch support, mining anchor bolts, arch net, plate washer and etc.

other steel products

channel steel, angle steel, I-beam steel, mining I-beam steel, U-beam steel, H-beam steel, steel plate, and etc.

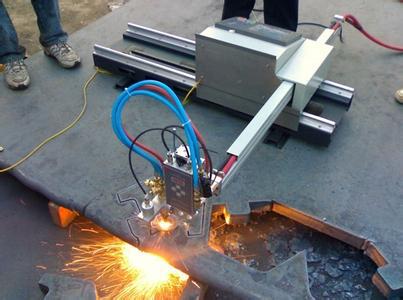

Steel processing





Packaging Details: packed in bundle with iron wire or as your requirement

Delivery Details: within 15-35 workdays after receiving your payment



Our Services



• Large Stock

• Processing

• Full-time Service

• Fast Delivery Time

• Professional Team

• Preferential Policy

• Good Corporate Reputation

• Competitive Price and High Quality



FAQ

Why Choose Us!

Q: Are you trading company or manufacturer ?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally, within 15-35 workdays after receiving your deposit.



Q: Can we visit you factory?

A: Warmly welcome! Once we have your schedule, we wii arrange the professional sales team to fellow up your case.

Q: Do you provide samples ? Is it free or extra ?

A:Available upon request.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
