12kg Steel Rail Railway Rail From Steel Rail Manufacturer
Edit:Zongxiang Heavy Industry-- Date:2017-10-13 14:54:02

12kg Steel Rail Railway Rail From Steel Rail Manufacturer

Edit:Henan Zongxiang Heavy Industry Import & Export Co.,Ltd   Date:Sep 21, 2017

Information about rail



As an essential component of railway track structure, steel rail is applied to guide train wheels move forward. The function of rail is to withstand the enormous pressure of the wheel, and pass it to the sleepers. Steel rail must provide continuous, smooth rolling surface of least resistance to train wheel. Modern rail take many years to improve the quality of materials, for example, material of steel rail is changed into steel from iron. Steel rail is typically made into I-beam, and it is made of high-quality steel alloy. The strength of rails and other track parts is important for train to keep faster and safety.



Types of rail

According to different ways like weight, standard, tensile strength, steel rail can be divided into several types. Take national standard as an example, we can classify Steel rail into the following types.



Chinese standard steel rail

By the weight per meter, Chinese standard steel rail can be classified into three types, such as heavy rail, light rail and crane rail. When the weight per meter of steel rail is equal to or less than 30kg, it is called light rail. On the contrary, heavy rail is refer to the weight per meter of rail is more than 30kg.

Typr

Height

(mm)

Base Width

(mm)

Head Withd

(mm)

Web(mm)

Theoretical

Weight

(kg/m)

Length

(mm)

Materials
6KG 50.8 50.8 25.4 4.76 5.98 6 -12 Q235
8KG 65 54 25 7.0 8.42
9KG 63.5 63.5 32.1 5.9 8.94

Q235

55Q

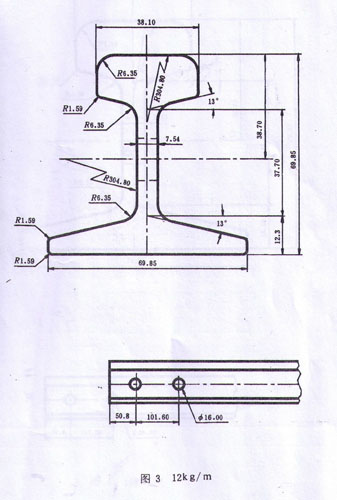

12KG 69.85 69.85 38.1 7.54 12.2
15KG 79.37 79.37 42.86 8.33 15.2
18KG 90 80 40 10.0 18.06
22KG 93.66 93.66 50.80 10.72 22.30
24KG 107 92 51 10.9 24.46
30KG 107.95 107.95 60.33 12.30 30.10






Company Information

Zhongxiang Steel Group has been engaged in steel trade and rail processing more than 20 years. We establish branch companies and processing plants in Shanghai, Henan, Hebei, Guizhou. We strive to provide customers with more convenient, thoughtful, high quality service. And our products have been exported to countries and regions over the world, like  Russia, India, Pakistan, Thailand, Korea, Brazil, South Asia and so on.

GB Standard:

             light rail (6kg, 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg)

             heavy rail (38kg, 43kg, 50kg, 60kg, 75kg)

             crane rail(Qu70, Qu80, Qu100, Qu120)

Other Different International Standards:

             UIC Standard (uic50, uic54, uic60)

             DIN Standard (A55, A65, A75, A120)

             ASTM/AREMA Standard, BS Standard, JIS E Standard, and etc.

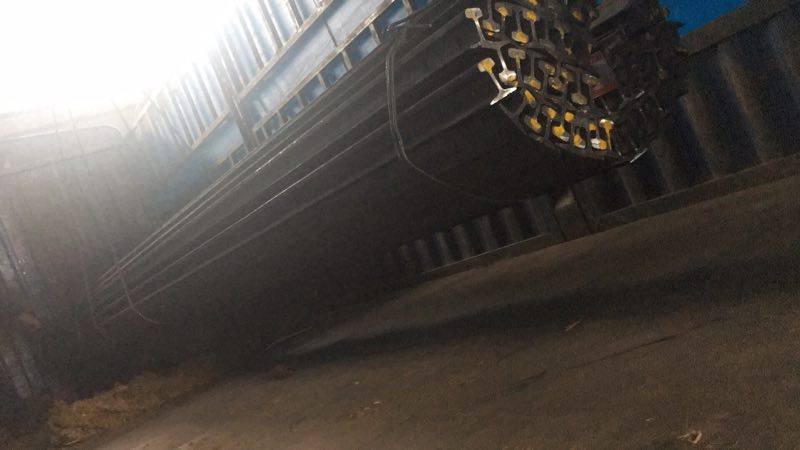

Packaging & Shipping

Packaging Details: packed in bundle with steel wire or as your requirement

Delivery Details: within 15-35 workdays after receiving your payment




Our Services

  • Fast Delivery Time

  • Large Stock

  • Good Corporate Reputation

  • Full-time Service

  • Processing

  • Preferential Policy

  • Competitive Price and High Quality

  • Professional Team


Track Accessories

We also can supply the following products with competitive price.



             Dog Spike                                 Fish Plate                                         Tie Plate


Certification

Quality assurance: mill test certificate is provided and third inspection is acceptable. In order to ensure better quality, our products-the steel rails must pass several tests, including chemical composition test, tensile strength test, hardness test and the drop weight test.



FAQ

Why Choose Us!

Q: Are you trading company or manufacturer ?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally, within 15-35 days after deposit received.



Q: Can we visit you factory?

A: Warmly welcome! Once we have your schedule, we wii arrange the professional sales team to fellow up your case.

Q: Do you provide samples ? Is it free or extra ?

A:Available upon request.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
