15kg Mine Light Rail Steel

Basic Info

· Product name: Qu70 Crane Rails Steel Rails

· Part: Railway Rail

· Warranty: >3 Years

· Material: q235/55q

· Web Thickness: 8.33mm

· Bottom Width: 79.37mm

· Head Width: 79.37mm

· Length: 6,8,9,10m or as Per Required

· Weight: 15.2kg/m

· Secondary or Not: Not

· MOQ: 10 Ton

· Trademark: Zhongxiang

· Origin: Hebei

· Certification: UIC, AREMA, BS, GB/T 1222, DIN 17221

· Bolt Grade: High Standard

· Color: Plain

· Specification: SGS

· HS Code: 730210000

Specifications
Chinese standard Railway train Steel Rail
1. Certificate of factory
2. Certificate of Origin
3. Third party inspection

Chinese standard Railway train Steel Rail

Light rail

Size:8kg/m,9kg/m,12kg/m,15kg/m,18kg/m,22kg/m,24kg/m,30kg/m

Length: 6-12m or based on customers demands

Material: q235/55q

Heavy Rail
Size: 38kg/m,43kg/m,50kg/m,60kg/m
Length: 12-36m or Other Length Accord Requirement

Material: 50Mn/U71Mn

Crane rail

Size: qu70,qu80,qu100,qu120

Length: 12m or based on your customers demands

Material: U71Mn

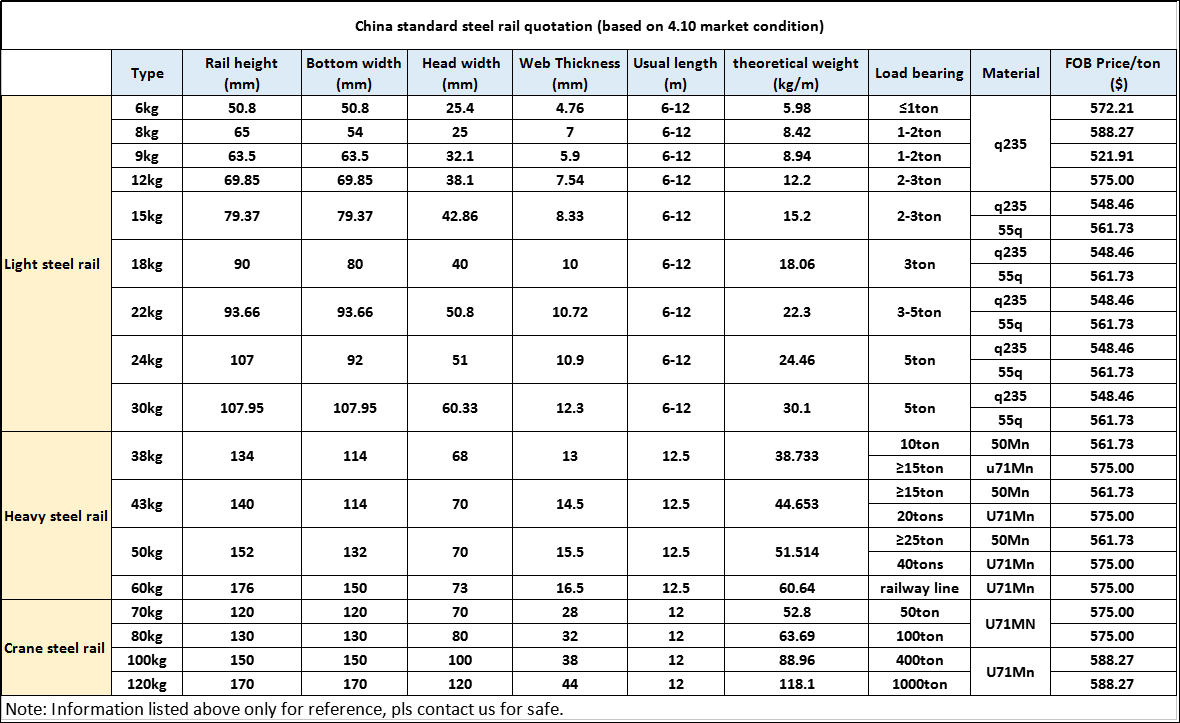

Below is QUOTATION EXCEL for your reference.

Henan Zongxiang Heavy Industry Import&Export Co.,ltd.manufactures steel rails and railway fasteners . As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/  Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!
